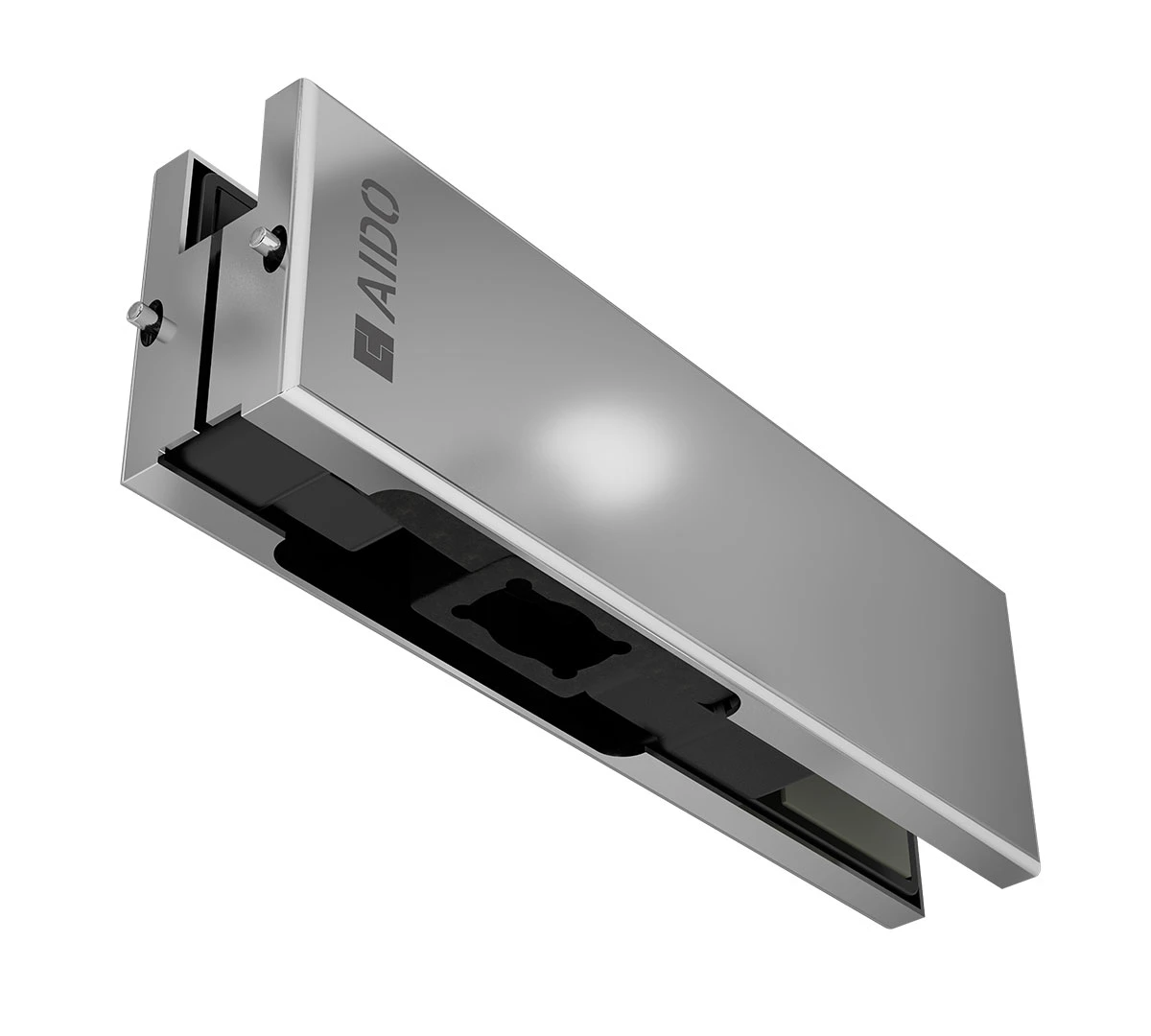

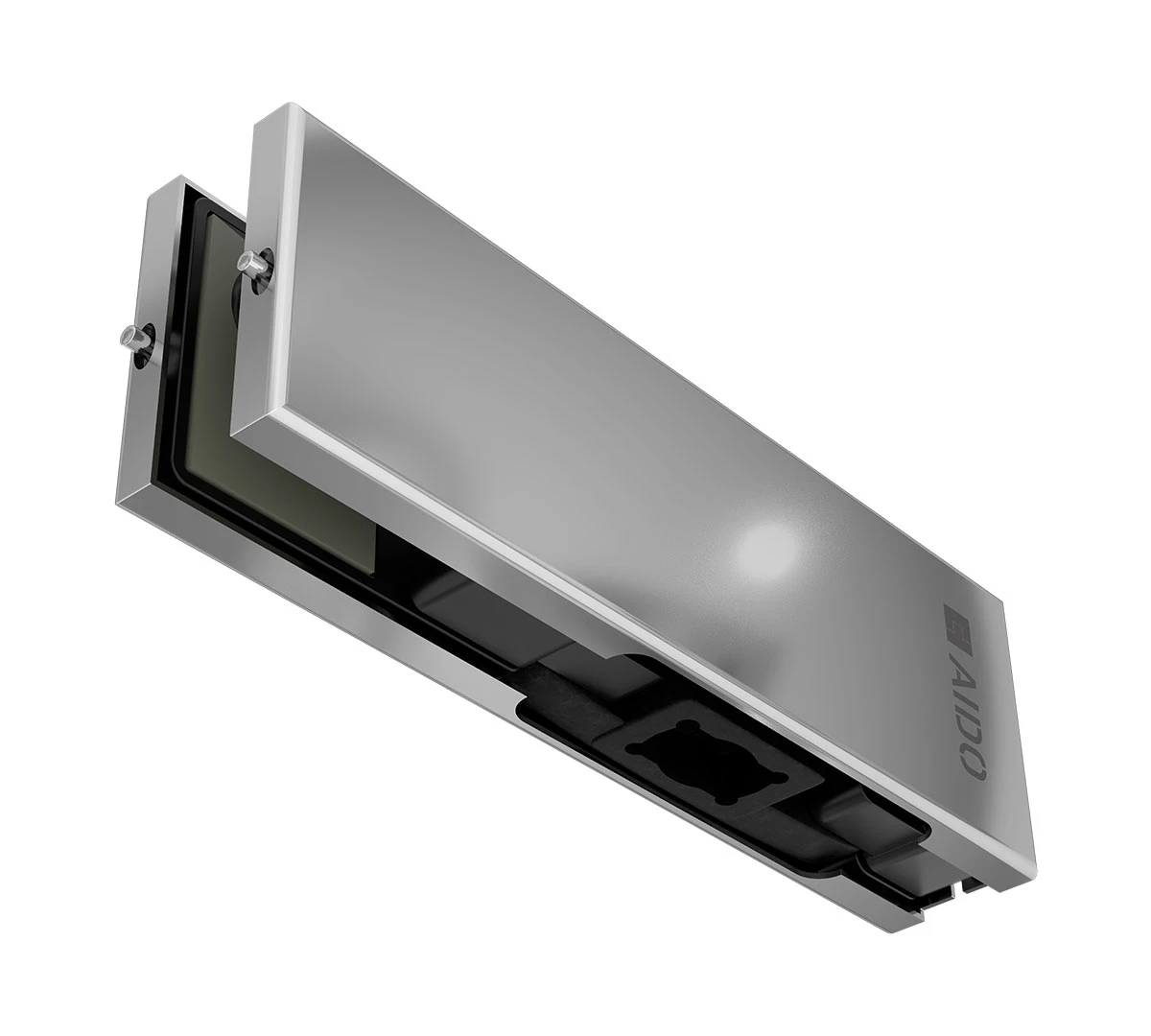

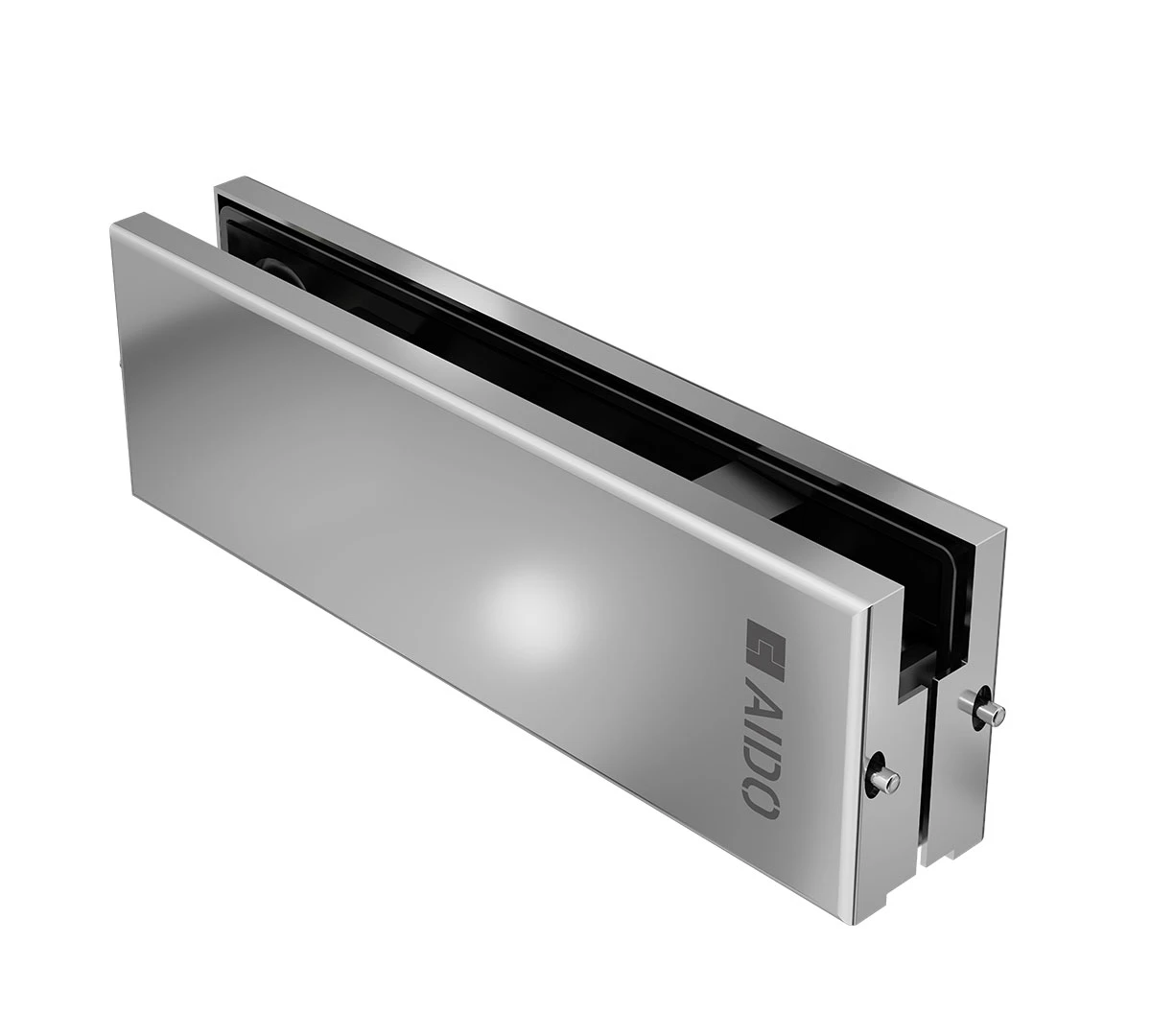

XL-C 4012A glass door bottom patch fitting is designed for standard double action doors for the basic requirements with a door width of up to 1100 mm and a maximum door weight of 100 kg. The package includes a bottom patch, gasket & insert for holding the door at the bottom edge which can engage with the floor spring for the free swing action. Some of the major features of XL-C 4012A are easy installation, adjustability for both 10 & 12-mm glass thickness, and no visible screw connection for a cleaner look. For traders, it is a low-cost solution for standard glass doors which is suitable for both 10 & 12mm glass thickness. For installers, it comes with an easy installation feature thanks to its elegant design. It is also easily adjustable and can be used with existing systems. For architects/specifiers, it is an easy solution for glass doors and can handle door weights up to 100 kg and door widths up to 1100 mm. The users get AIDO quality in the basic segment along with comfortable door operation with low effort various finishes available as options.
