XL-C 301 Internal GD PKG - 1

XL-C 301 Internal glass door package with hinges & lock is designed for standard glass door swing action with a quiet and smooth operation that meets the basic requirement of door width up to 1000 mm and a maximum door weight of 45 kg. The package includes a set of Hinges inclusive of the sleeve for holding the Door as a free swing along and a Lock with both lever handles & a Euro profile cylinder with both side Keys for locking purposes and a strike plate screwed on the wall/frames.This product is easy & flexible to mount & needs simple glass preparation and is adaptable for both 8 & 10mm Glass thicknesses. Also, the no visible screw connection which gives clean look.

XL-C 302 Internal GD PKG - 2

This product offers quick and easy installation with a user-friendly design that simplifies glass preparation and adjustment. The integration of noise-insulating material ensures quiet and smooth closing, while the refined construction enhances the overall aesthetics of the installation. Built with a strong focus on security, reliability, and quality, the system delivers dependable performance through thoroughly tested components. Multiple finish options provide flexibility in design, allowing the product to seamlessly complement a wide range of architectural styles.

XL-C 303 Internal GD PKG - 3

XL-C 303 internal glass door package with hinges & lock is designed for standard glass door swing action with a quiet and smooth operation that meets the basic requirement of door width up to 1000 mm and a maximum door weight of 45 kg. The package includes a set of hinges inclusive of the sleeve for holding the door as a free swing along and a lock with both lever handles & a euro profile cylinder with both side keys for locking purposes and a strike plate screwed on the wall/frames.cam-action door closers with easy open technology feature a heart-shaped cam that significantly reduces the opening resistance that must be overcome, almost as soon as the door is operated can also be included as optional. It is easy & flexible to mount, it needs simple glass preparation, is adaptable for both 8 & 10mm glass thickness, and has no visible screw connection which gives it a clean look.

XL-C 304 Internal GD PKG - 4

XL-C 304 internal glass door package with hinges & lock is designed for standard glass door swing action with a quiet and smooth operation that meets the basic requirement of door width up to 1000 mm and a maximum door weight of 45 kg. The Package includes a set of hinges inclusive of sleeves for holding the door as a free swing along and a lock with both lever handles & euro profile cylinder with both side keys for locking purposes and a strike plate screwed on the wall/frames.Cam-action door closers with easy open technology feature a heart-shaped cam that significantly reduces the opening resistance that must be overcome, almost as soon as the door is operated can also be included as optional. It is easy & flexible to mount, it needs a simple glass preparation, and is adaptable for both 8 & 10mm glass thickness.

XL-C 305 IGD Hinges

XL-C 305 internal glass door hinges are for standard glass door swing action with a quiet and smooth operation that meets the basic requirement of a door width of up to 1000 and a maximum door weight of 45 kg. The package includes a set of hinges inclusive of sleeves for holding the door as a free swing.It is easy & flexible to mount, it needs a simple glass preparation, and is adaptable for both 8 & 10mm glass thickness. Also, the no visible screw connection gives it a clean look.

XL-C 306 IGD Hinges

XL-C 306 internal glass door hinges are for standard glass door swing action with a quiet and smooth operation that meets the basic requirement of a door width of up to 1000 and a maximum door weight of 45 kg. The package includes a set of hinges inclusive of sleeves for holding the door as a free swing.It is easy & flexible to mount, it needs a simple glass preparation, and is adaptable for both 8 & 10mm glass thickness. Also, the no visible screw connection gives it a clean look.

XL-C 307 IGD Lock

XL-C 307 internal glass door lock accessories are designed for standard glass door locking purposes with a quiet and smooth operation that meets the basic requirement of a door with 8mm/10mm glass. The package includes a lock with a lever handle & a euro profile cylinder with both side keys for locking purposes and a strike plate screwed on the wall/frames.It is easy & flexible to mount, it needs a simple glass preparation, and is adaptable for both 8 & 10mm glass thickness. Also, the no visible screw connection gives it a clean look.

XL-C 308 IGD Lock

XL-C 308 internal glass door lock accessories are designed for standard glass door locking purposes with a quiet and smooth operation that meets the basic requirement of a door with 8mm/10mm glass. The package includes a lock with a lever handle & a euro profile cylinder with both side keys for locking purposes and a strike plate screwed on the wall/frames.It is easy & flexible to mount, it needs a simple glass preparation, and is adaptable for both 8 & 10mm glass thickness. Also, the no visible screw connection gives it a clean look.

XL-C 309 IGD Lock

XL-C 309 internal glass door lock accessories are designed for standard glass door locking purposes with a quiet and smooth operation that meets the basic requirement of a door with 8mm/10mm glass. The package includes a lock with a lever handle & a euro profile cylinder with both side keys for locking purposes and a strike plate screwed on the wall/frames.It is easy & flexible to mount, it needs a simple glass preparation, and is adaptable for both 8 & 10mm glass thickness. Also, the no visible screw connection gives it a clean look.

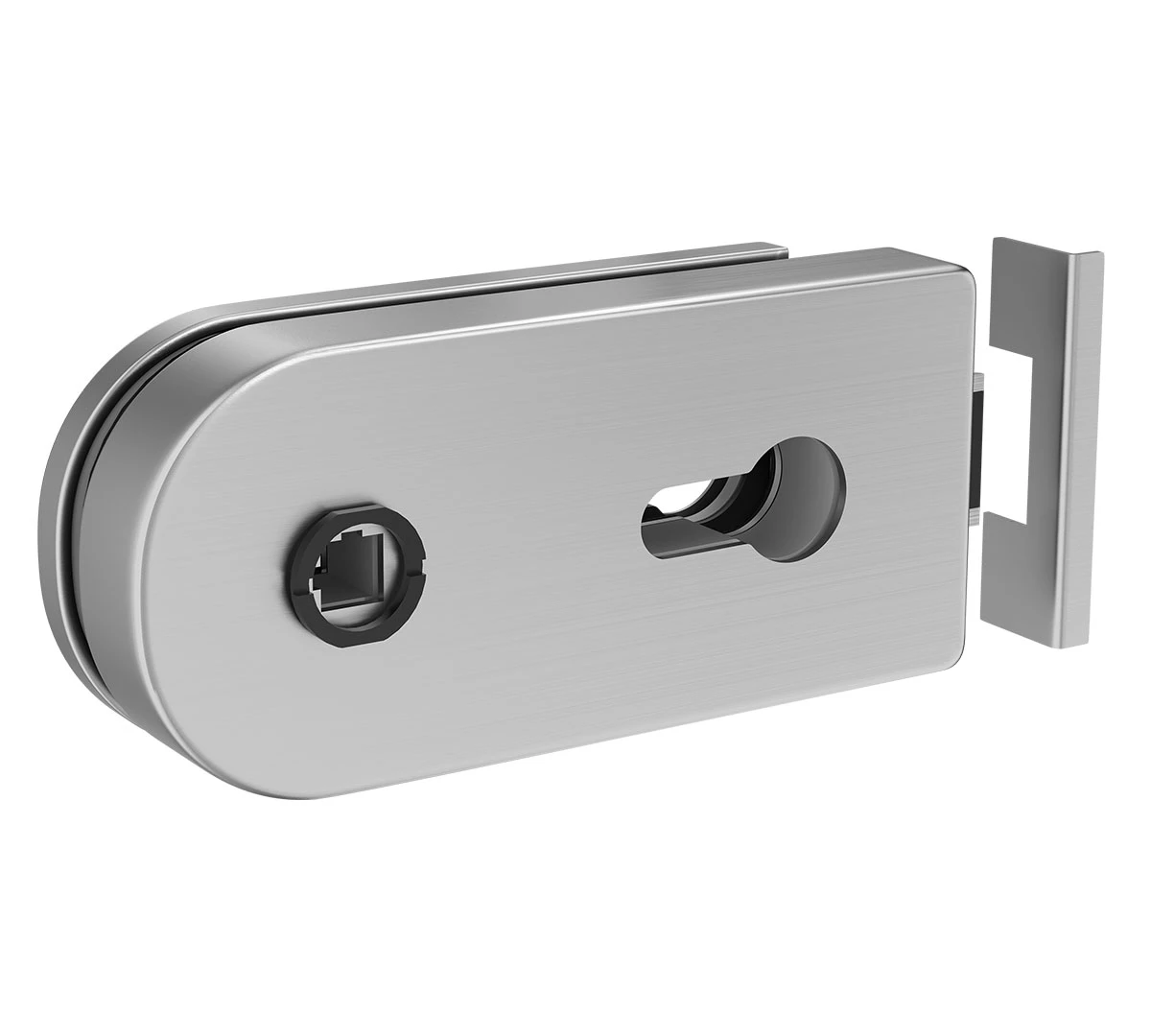

Internal Glass Door Fittings | XL-C 5422

The OSCILIO Series glass door curved locks are crucial components in the design and functionality of interior glass doors. These locks contribute to the security, ease of use, and overall aesthetics of the frameless glass door design for rebated frames of 24 to 26mm.The product features easy installation, adjustability for both 8-10mm glass thickness, and simple glass preparation. Benefits for the trade include a low-cost complete door solution for low traffic doors and a standard glass door solution with accessories.

Internal Glass Door Fittings | XL-C 5421
