Justo Slide System | XL-C 7217

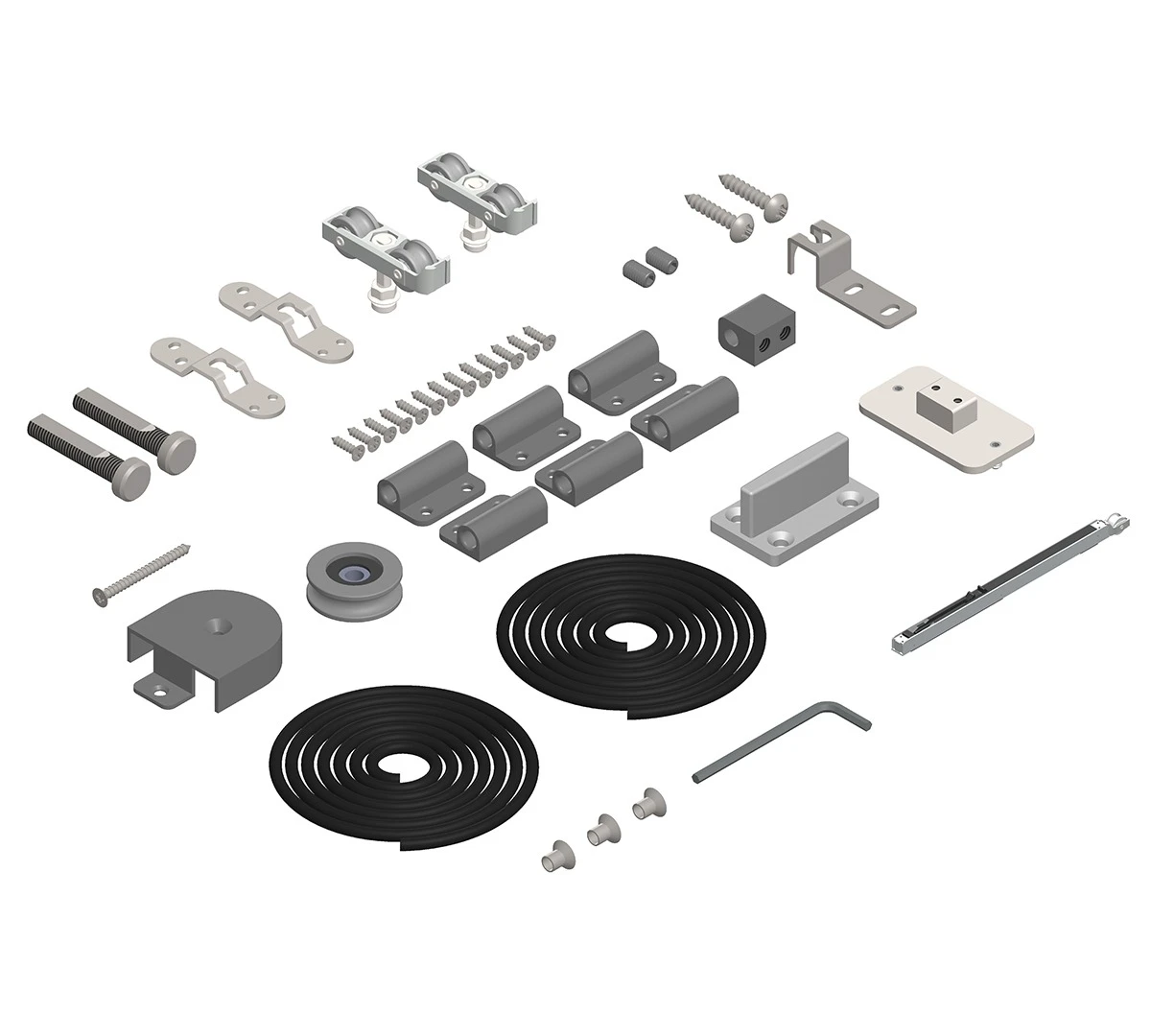

XL-C 7217 Justo SLIDE are designed for wooden sliding panel with a special feature of self-closing operation. The self-closing action is mechanically activated by an extendable nylon cable, the retaining system allows the sliding panel to stay in an open position for a short time period if required and the Silent running rollers with POM Wheel highly resistant to abrasion JS 7217 system has a weight carrying capacity upto 80Kg and The JS 80 kg self-closing wooden package contains set of T-side assembly brackets screwed on wooden sliding panel, 1SDM DORMOTION unit, activator plate, pair of rollers, nylon rope with wheel, floor guide.

The sliding door system is designed to be easy and flexible to mount, with the option of wall or ceiling fixing. It features a silent and easy operating system and comes with a self and soft-closing function.

See More
MRP: ₹11,795.00
My Queries

Product Details

XL-C 7217 Justo SLIDE are designed for wooden sliding panel with a special feature of self-closing operation. The self-closing action is mechanically activated by an extendable nylon cable, the retaining system allows the sliding panel to stay in an open position for a short time period if required and the Silent running rollers with POM Wheel highly resistant to abrasion JS 7217 system has a weight carrying capacity upto 80Kg and The JS 80 kg self-closing wooden package contains set of T-side assembly brackets screwed on wooden sliding panel, 1SDM DORMOTION unit, activator plate, pair of rollers, nylon rope with wheel, floor guide. The sliding door system is designed to be easy and flexible to mount, with the option of wall or ceiling fixing. It features a silent and easy operating system and comes with a self and soft-closing function. For the trade, the system offers a complete solution for a single sliding door panel, with the option of achieving soft closing/soft opening with the standard package. Installers will appreciate the system's quick installation and height adjustment of up to ? 2mm, and the fact that it is suitable for both wall and ceiling mount. The system does not require any glass cutout, making it easier to work with. One can also rely on the high level of quality of the system, which is modular and suitable for residential and commercial use. Finally, for the end user, the system offers a high level of quality and durability, as well as ease of use.
Specifications -
  • System Height : 2700mm(Max.)
  • Sliding Panel width: 610mm (Min.) - 1200mm(Max.)
  • Sliding Panel thick : 27mm(Min.) - 40mm (Max.)
  • Sliding panel weight : 80kg(Max.)
  • Finish : Aluminium sliver
Features +
  • Quick & Easy installation.
  • System without glass cutout.
  • Enchanced Aesthetics.
  • Option of having soft closing and soft opening unit.
Benefits +
  • High level in quality.
  • Reliable operation.
  • Tested products.

Product Downloads

🔍
Document Name
Document type
File Size
Download
Brochure Cum Price List
PDF
13.96 MB
×
